Play SP25HT

When regular tweeters tap out, these little horn monsters step in and start yelling properly.

SP25HT

Description

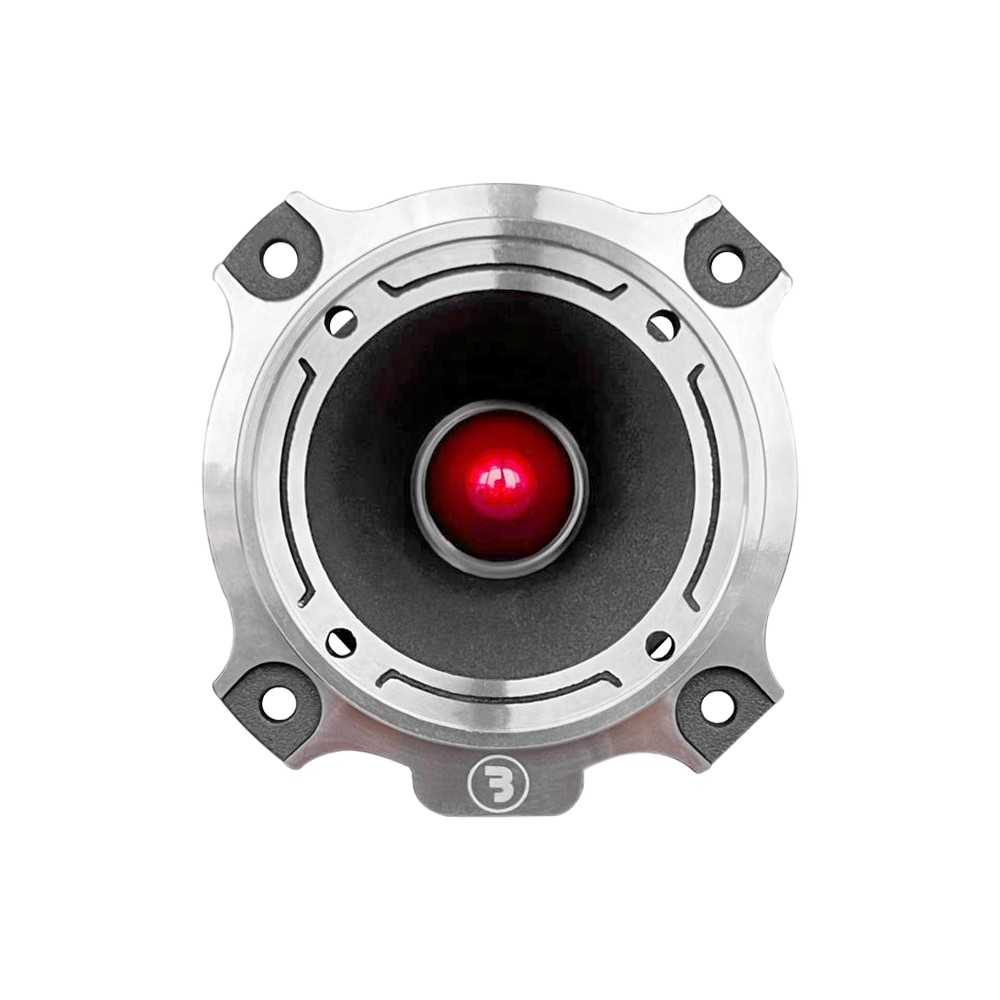

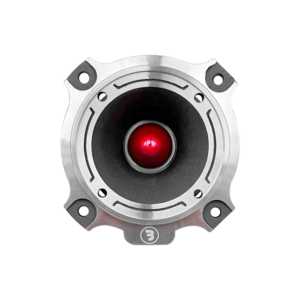

SPL Play SP25HT is a pair of compact 1 inch horn tweeters for systems that are already loud, angry and probably shaking something loose. Big bass. Punchy mids. Time to wake up the top end.



With 101 dB sensitivity, these tweeters do not need to be begged to perform. They cut through the chaos with sharp, clean detail, so vocals, snares and all the crispy bits actually reach your ears instead of getting buried under a bass avalanche.



The titanium diaphragm keeps things fast and snappy. The 1 inch Kapton voice coil handles heat when the volume knob gets treated with disrespect. The aluminium horn body adds strength, focus and that proper attitude without turning the install into a weekend of regret.

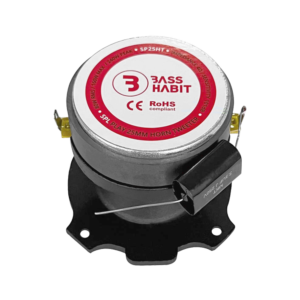

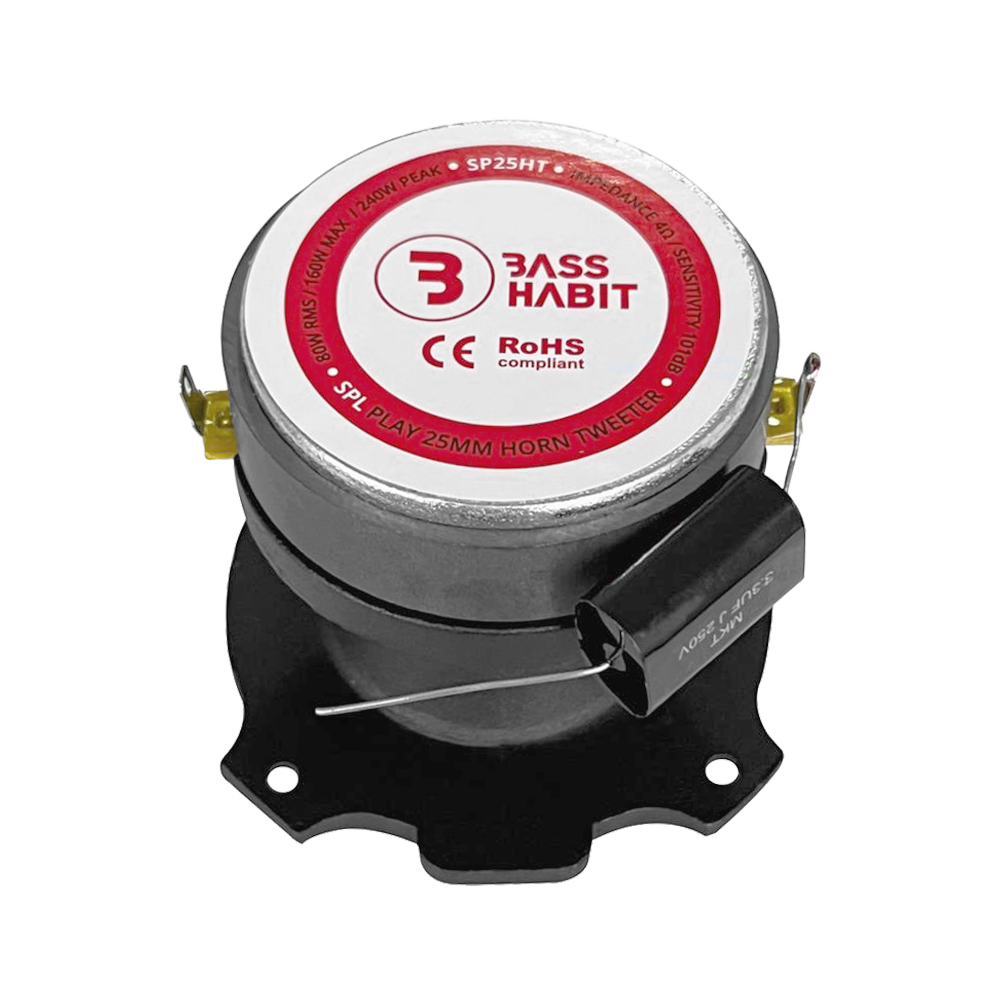

They are compact too. Easy to fit in door panels, custom boxes, demo builds or wherever your imagination and drill bits allow. You also get a simple 3.3 µF capacitor for basic high pass protection, because loud is fun. Cooked tweeters are not. Running active? Aim around 6 kHz with a 12 dB per octave slope and let them shine where they belong.



Small format. Big mouth. Serious top end for builds that refuse to whisper.

Additional information

Series

Play

Component

Tweeter

Size

1 inch

Nominal impedance

4 Ohm

Power RMS

80W

Power MAX

160W

Freq. response

3.5kHz – 20kHz

Sensitivity

101 dB

Mounting depth

63 mm

Mounting diameter

70 mm

Unit

Pair

Product manual SP25HT

Download
