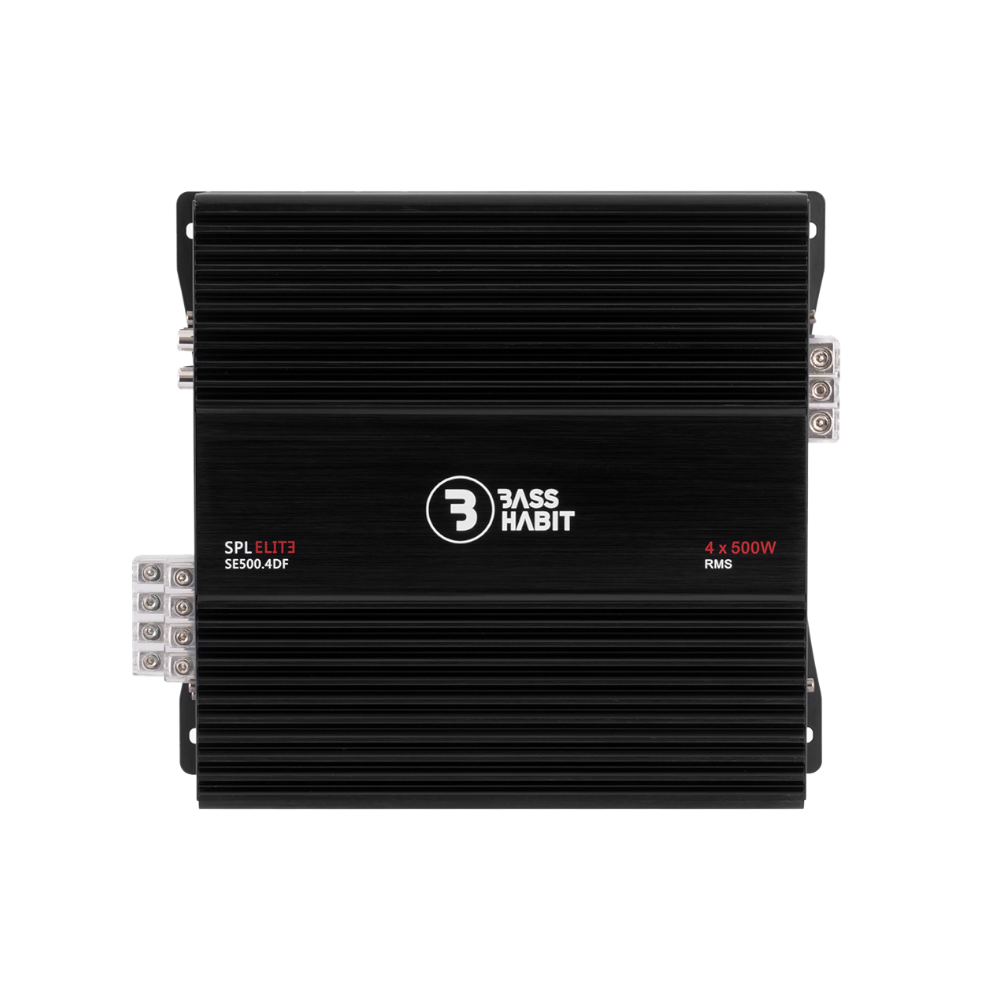

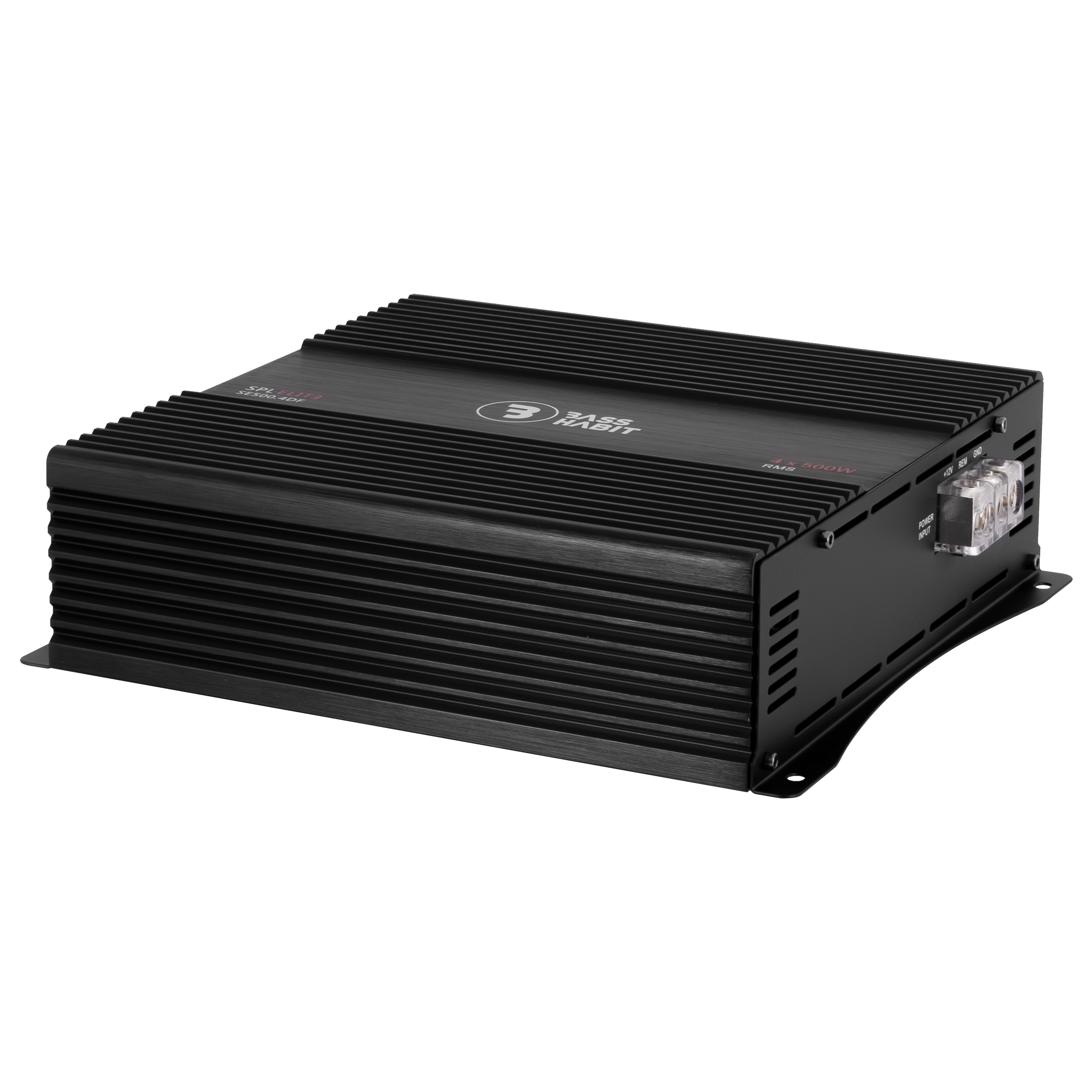

SPL Elite 500.4DF

4-channel full-range amp with 500W RMS per channel at 1 ohm, ultra-flexible filters, and wild hookup potential for any setup.









SE5004DF

Description

Four channels. One mission. Total domination.



The SPL ELITE 500.4DF is not your average 4-channel amp. This beast is stable at 1 ohm per channel—yeah, you read that right. That kind of flexibility is rare. Like unicorn-level rare. Which means you can get creative with your install. Run mids, tweets, bass—mix and match your setup like a sonic mad scientist.



Each channel pumps out 500W RMS at 1 ohm. Bridge it and you’re looking at 2x1000W RMS. That’s not a 4-channel. That’s a sonic flamethrower.

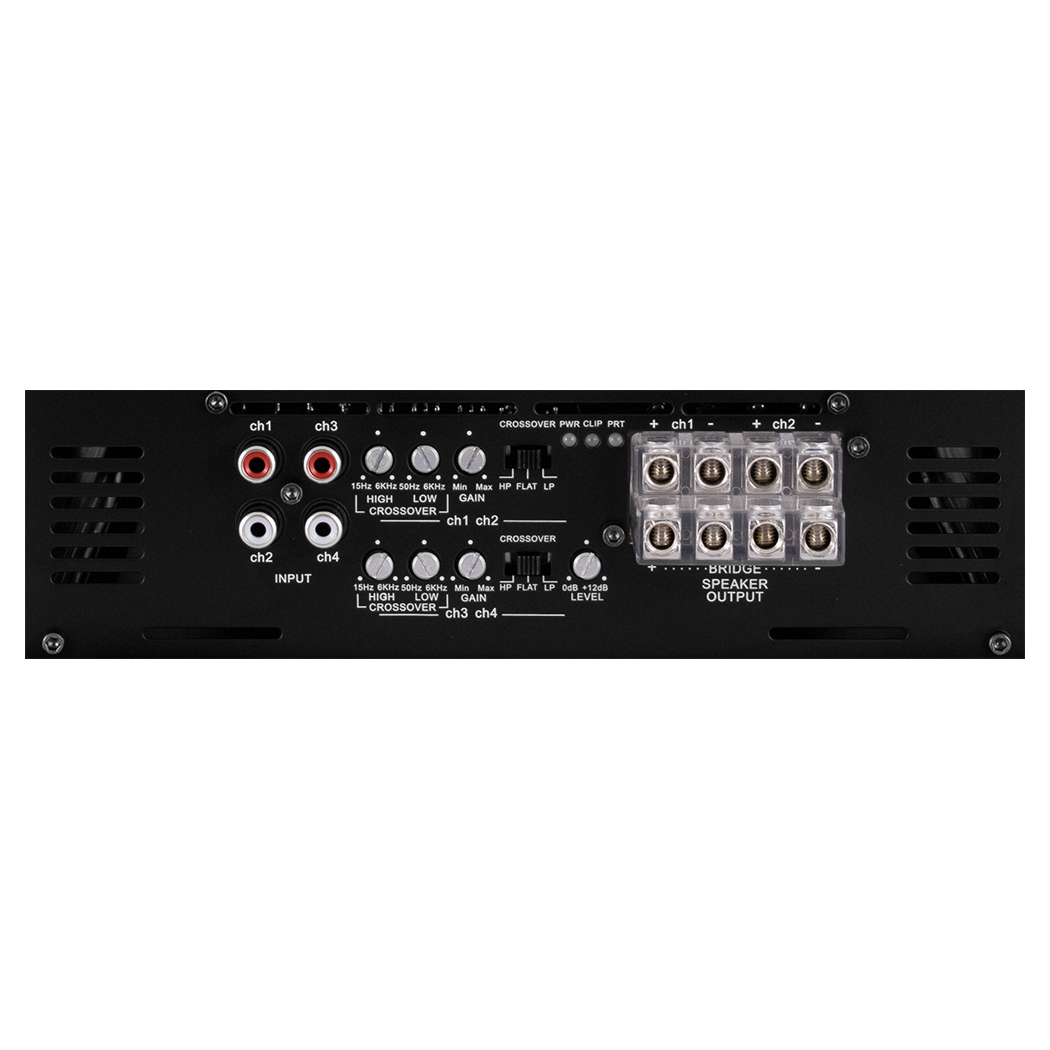

And thanks to ultra-flexible filters (high-pass and low-pass up to 6kHz), you can run everything from subwoofers to tweeters without needing extra crossovers. Just twist the knobs and dial it in. Clean mids? No problem. Sizzling highs? Easy. Tight bass? Oh yeah.

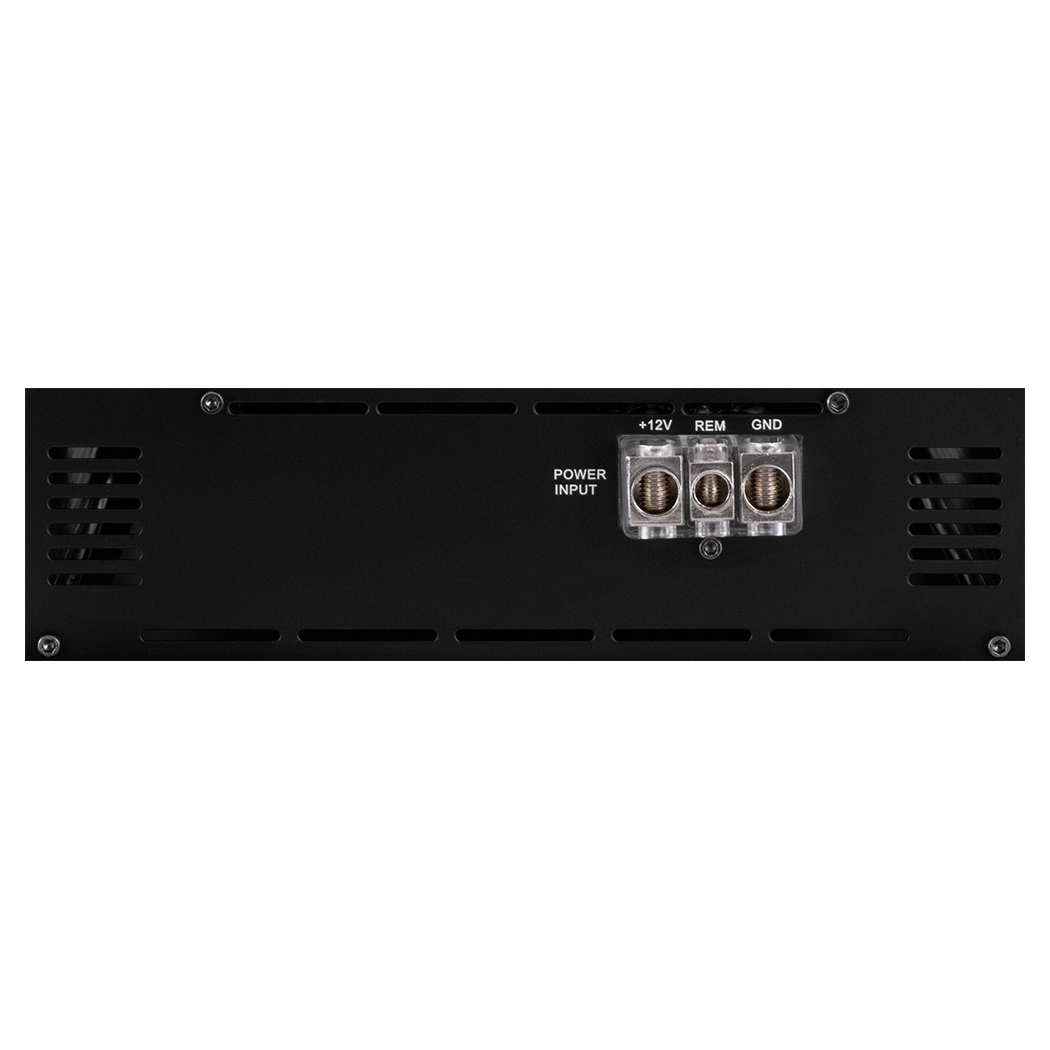

It takes 35mm² power cable because this thing doesn’t mess around. It’s built for serious builds. Serious volume. And serious respect.

Additional information

Series

Elite

Component

Amplifier

Channels

Four

Freq. response

10Hz – 20kHz

Power RMS (1 Ohm)

4x500W

Power RMS (2 Ohm)

4x250W

Power RMS (4 Ohm)

4x150W

Bridged Power RMS (2 Ohm)

2x1000W

Bridged Power RMS (4 Ohm)

2x500W

Dimensions (WxHxD)

260x225x66.5 mm

Product Manual SE500.4DF

Download

Product manual for SPL Elite 500.4DF
