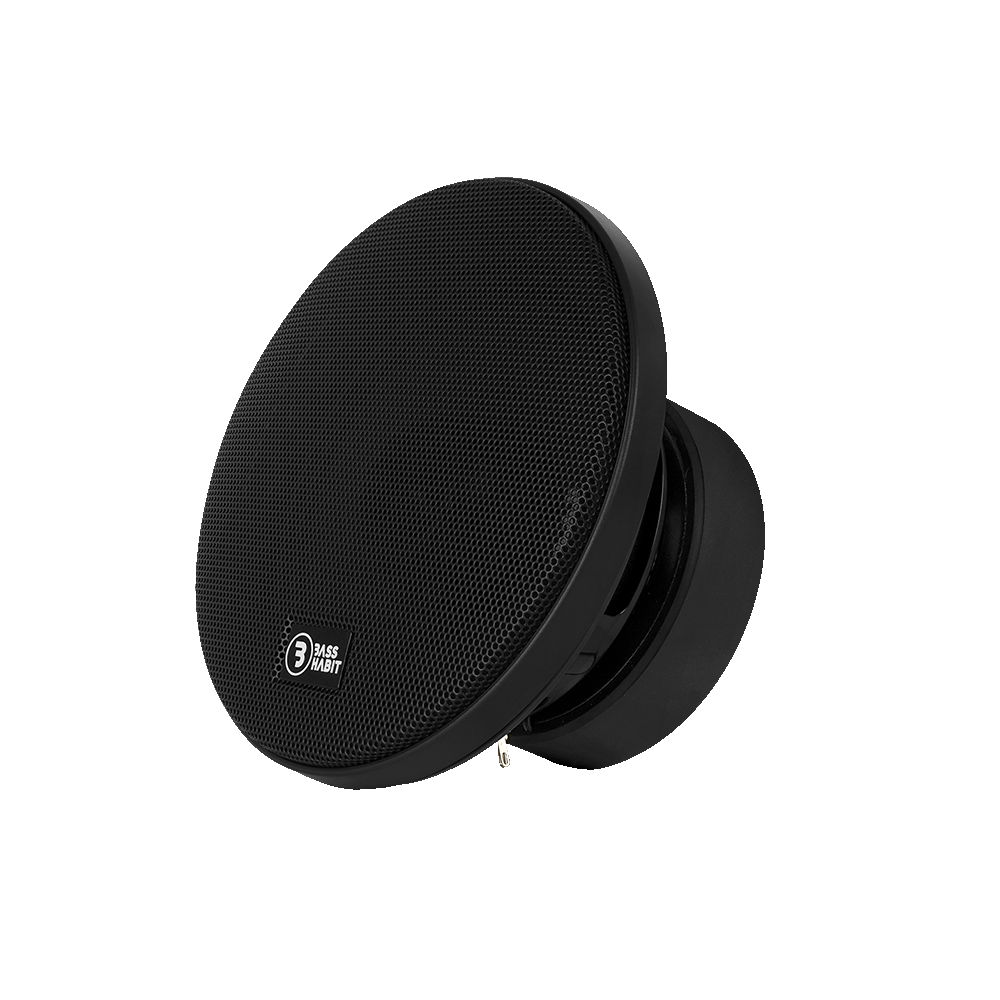

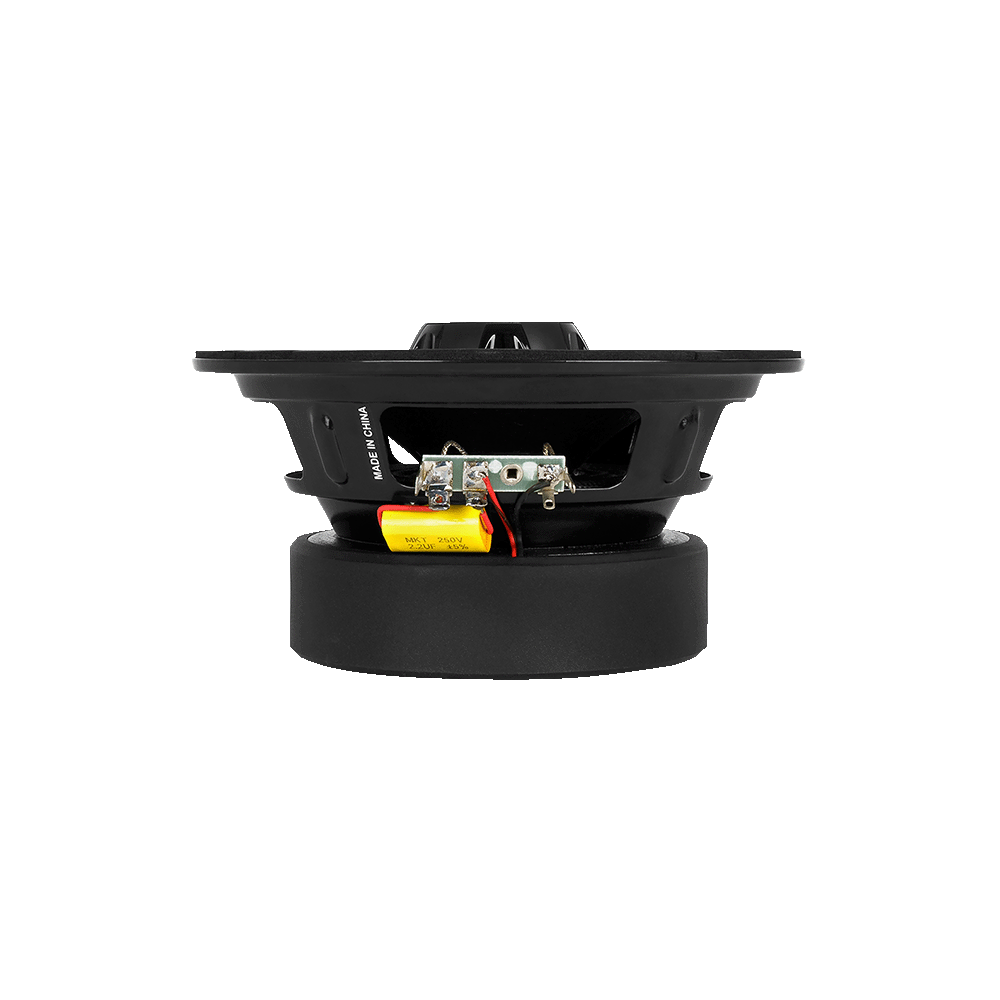

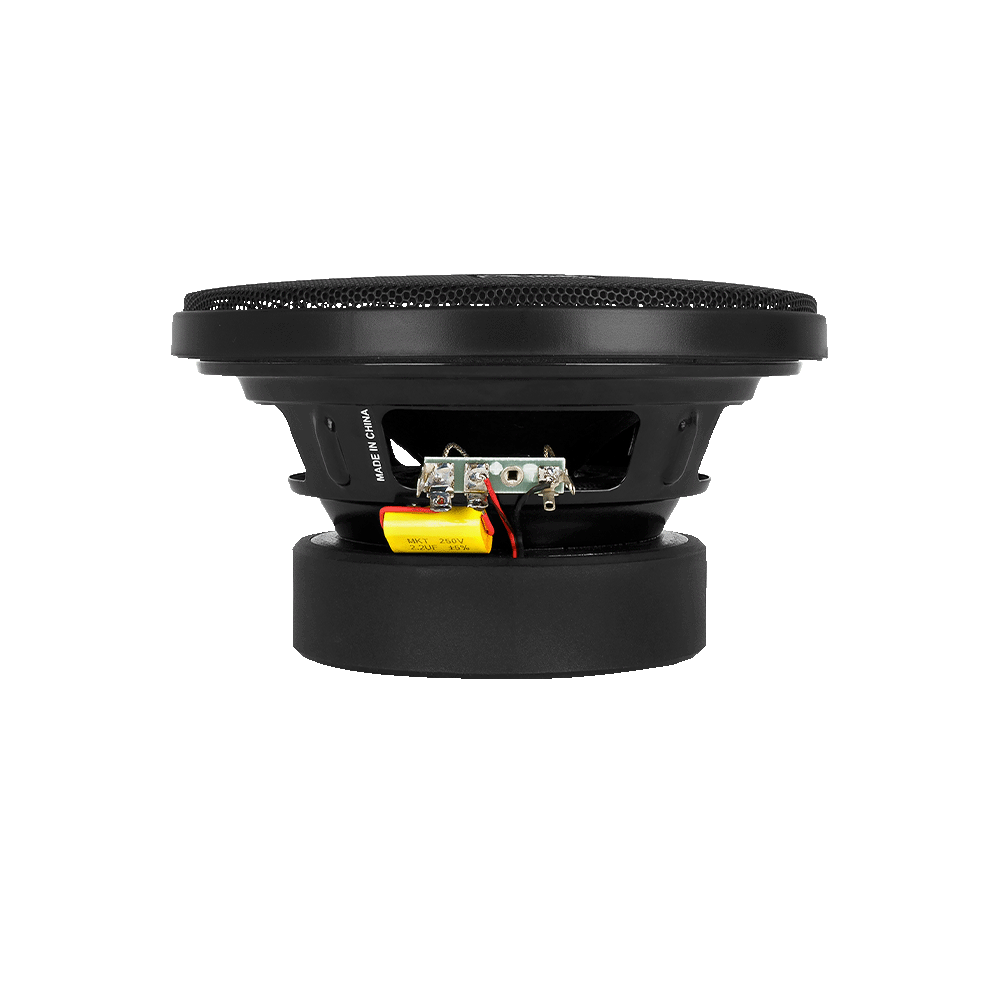

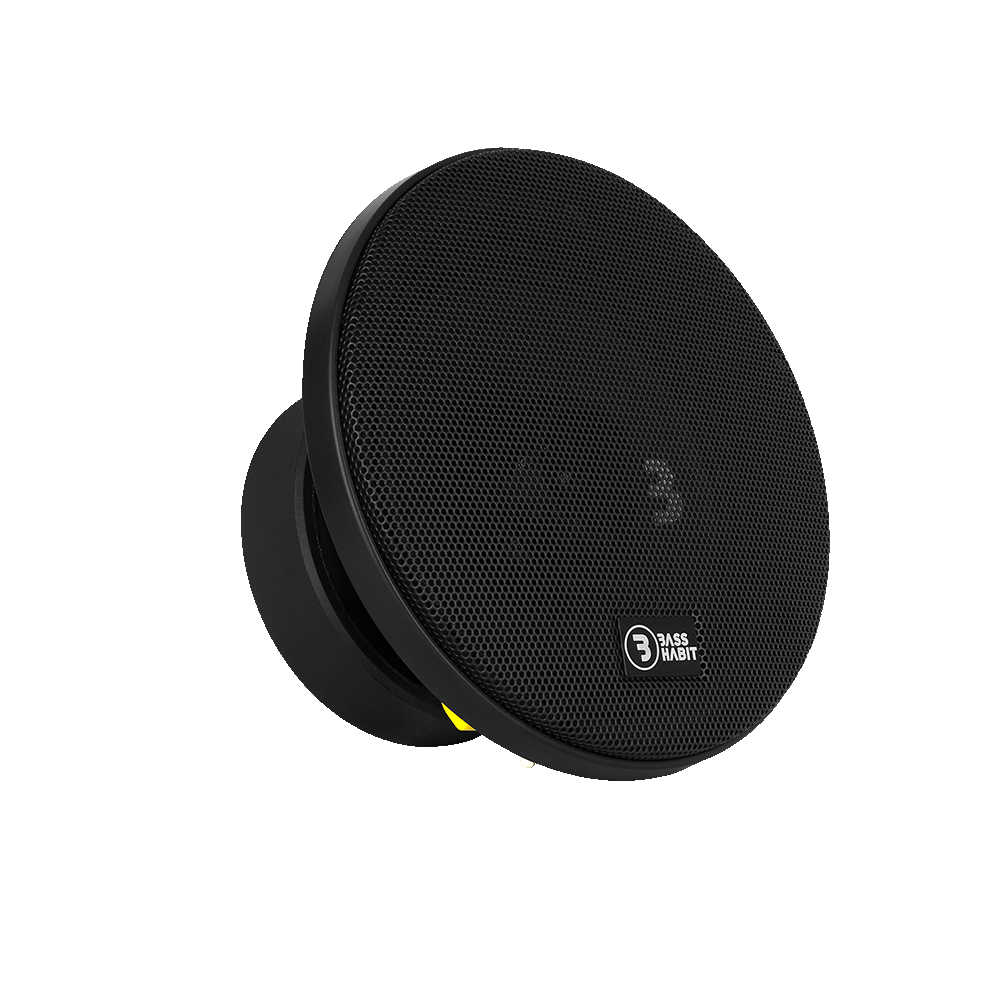

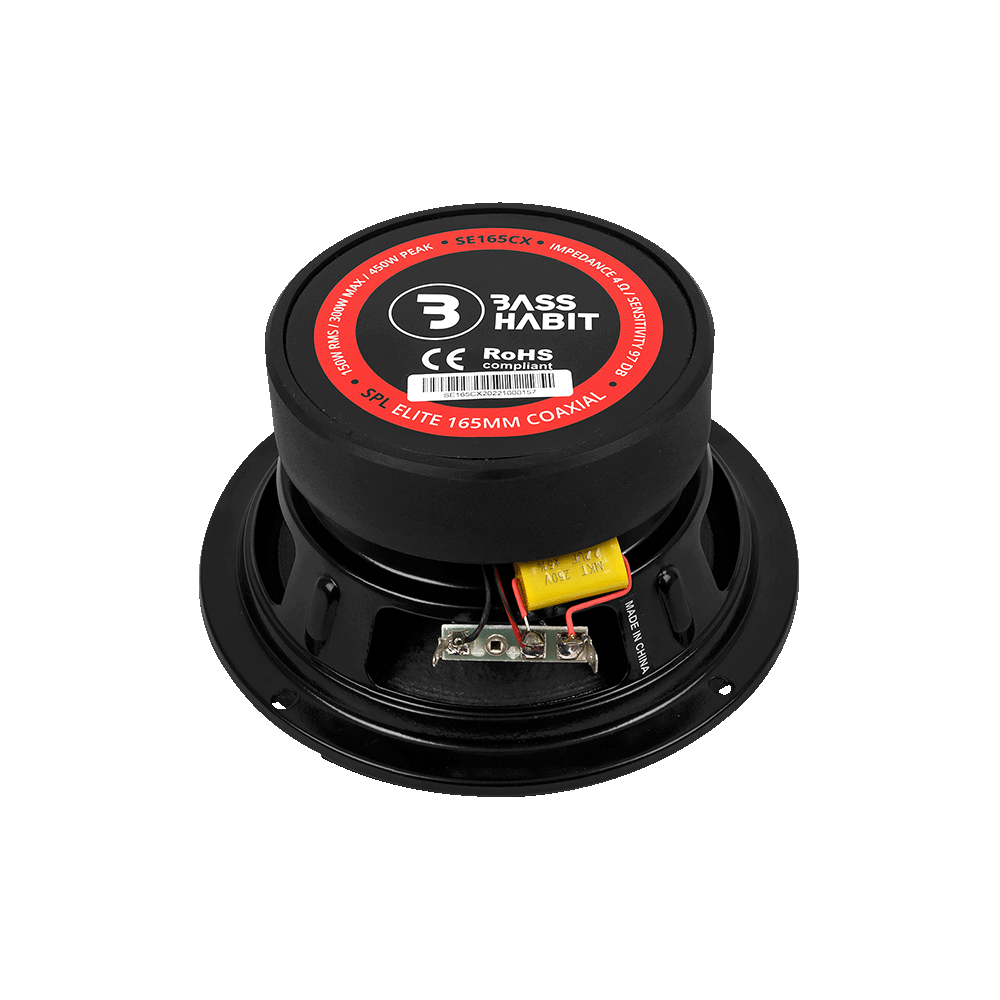

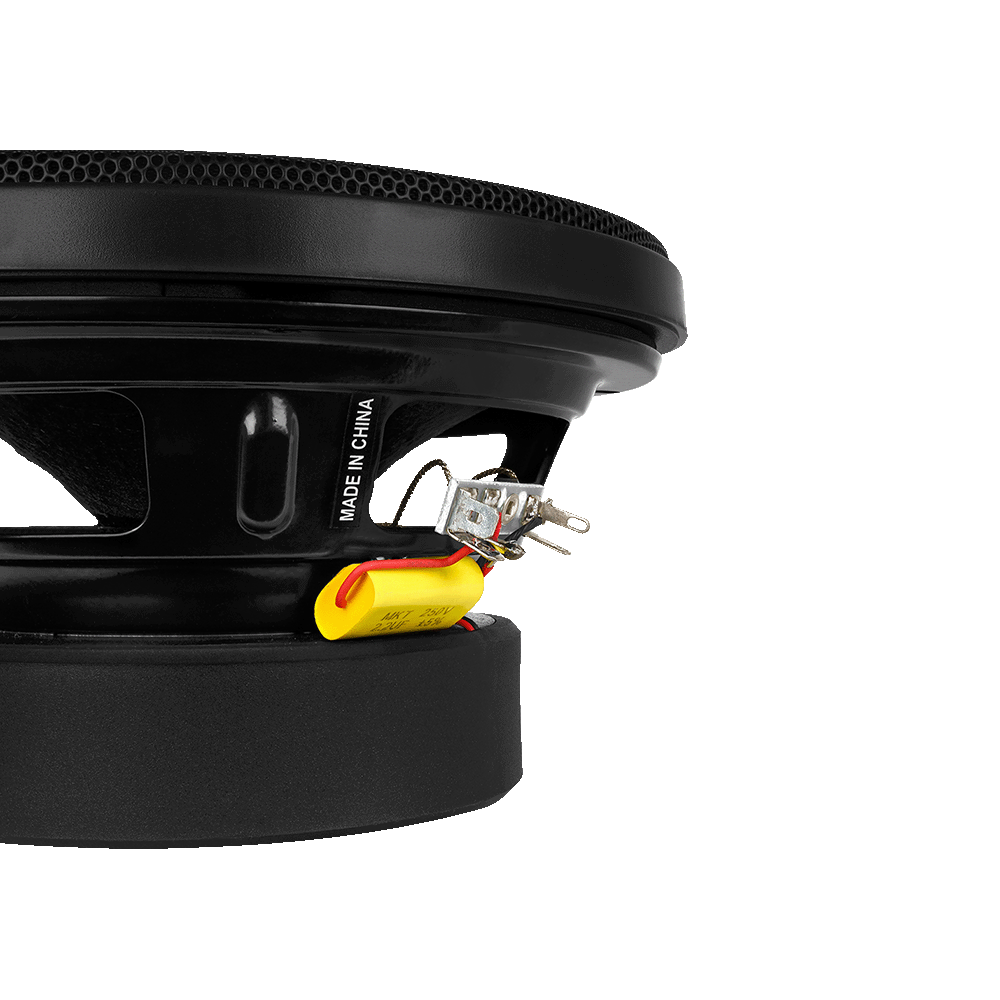

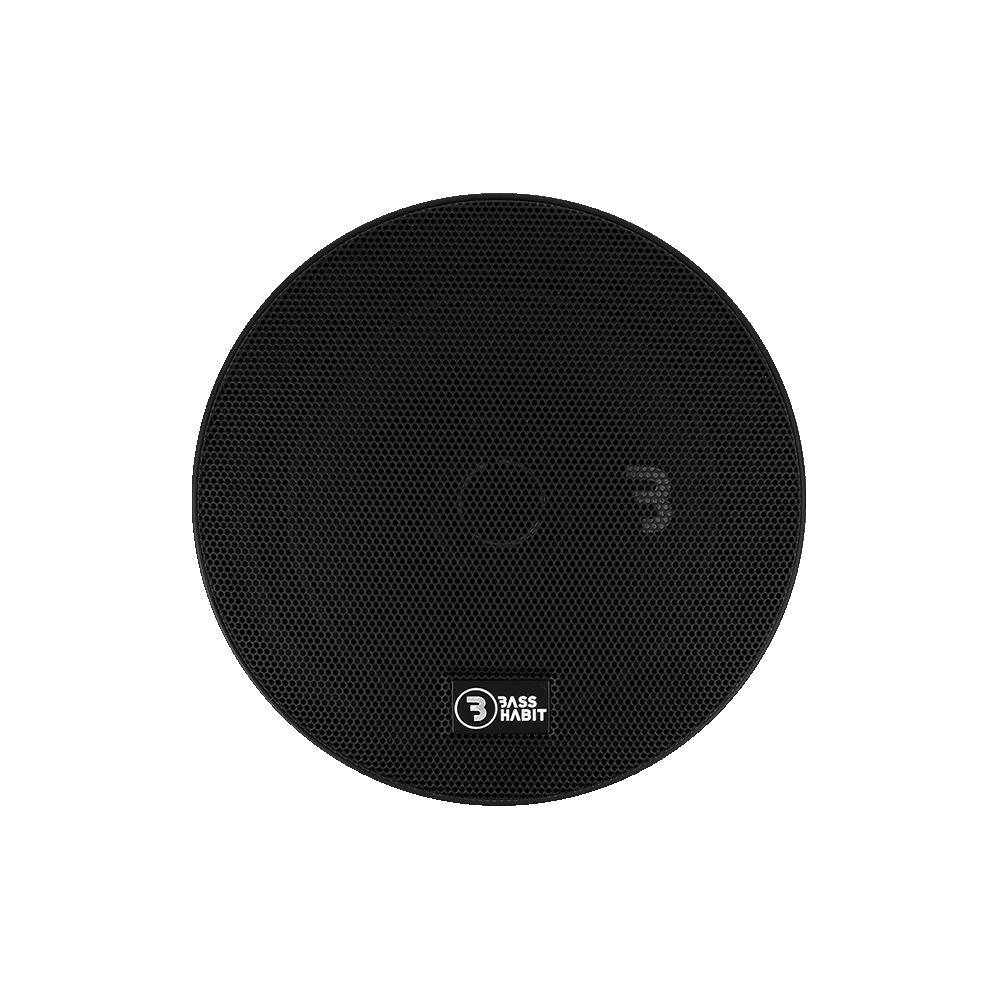

SPL Elite SE165CX

An awesome 6.5-inch coaxial speaker

SE165CX

Description

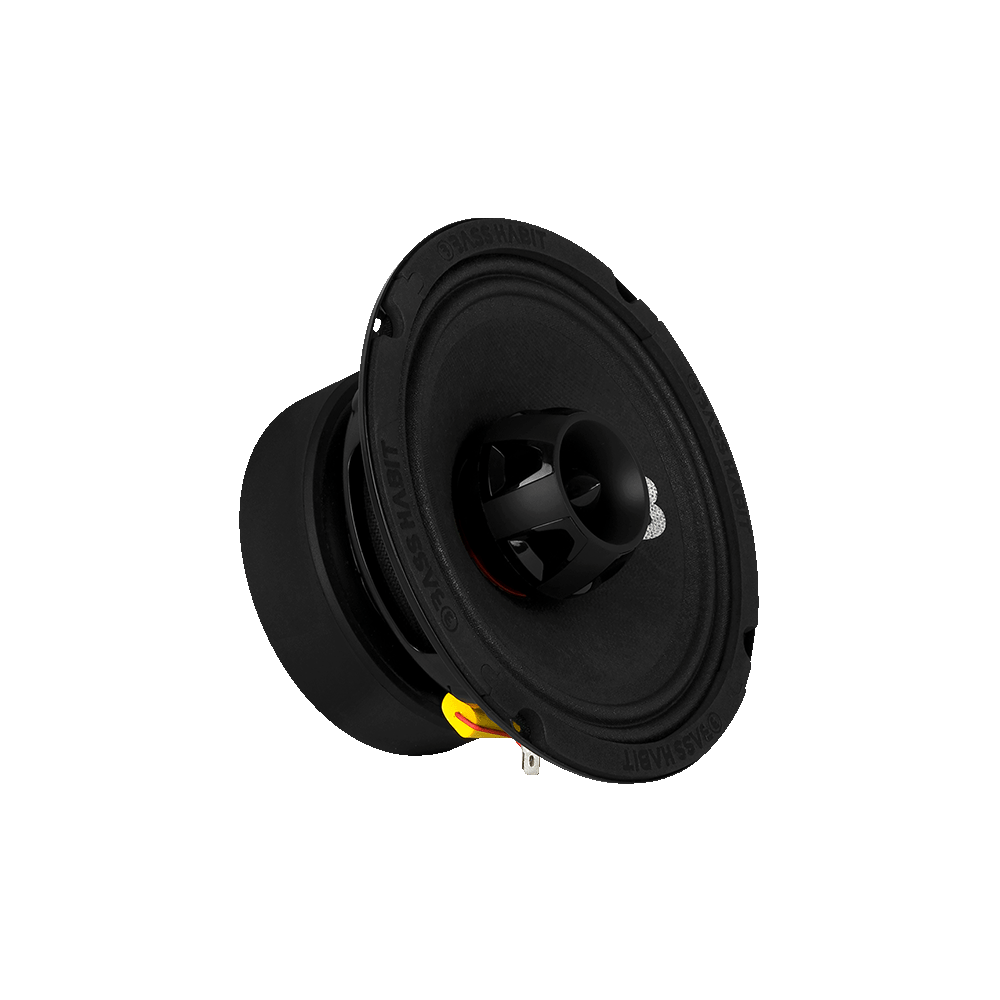

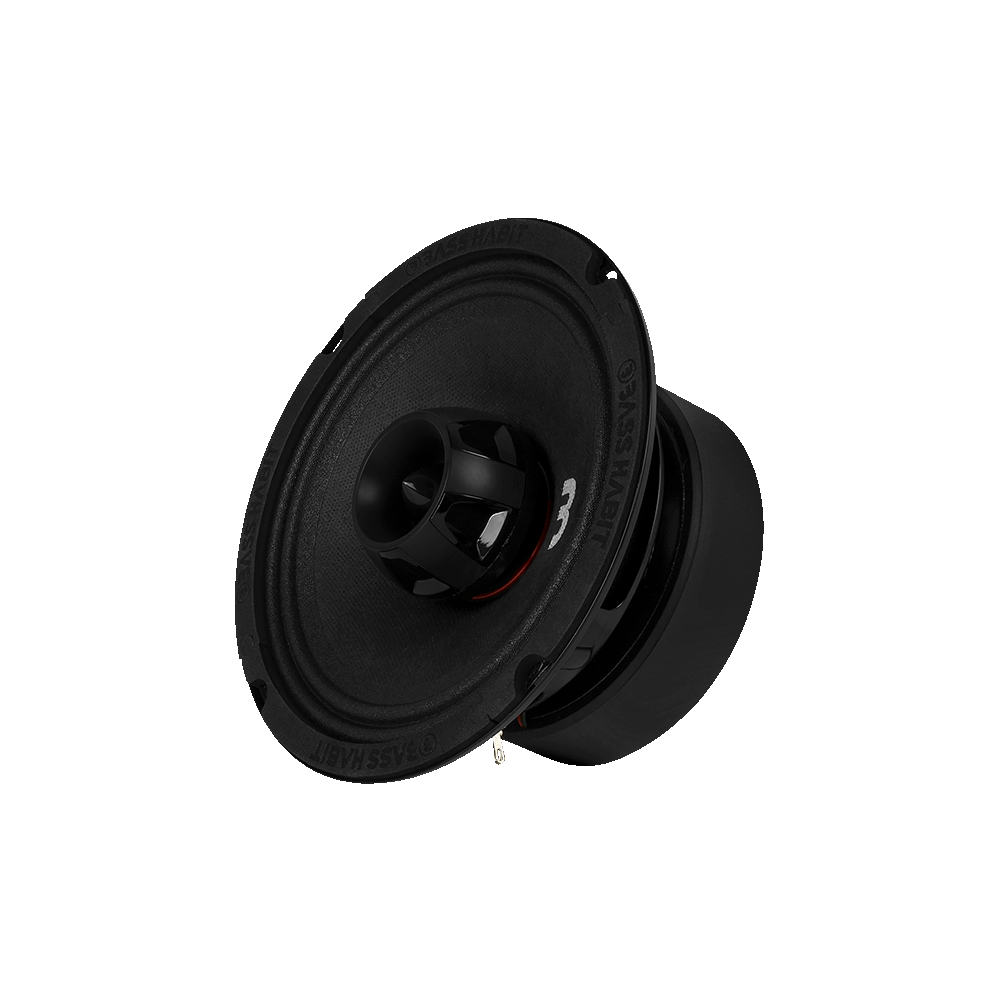

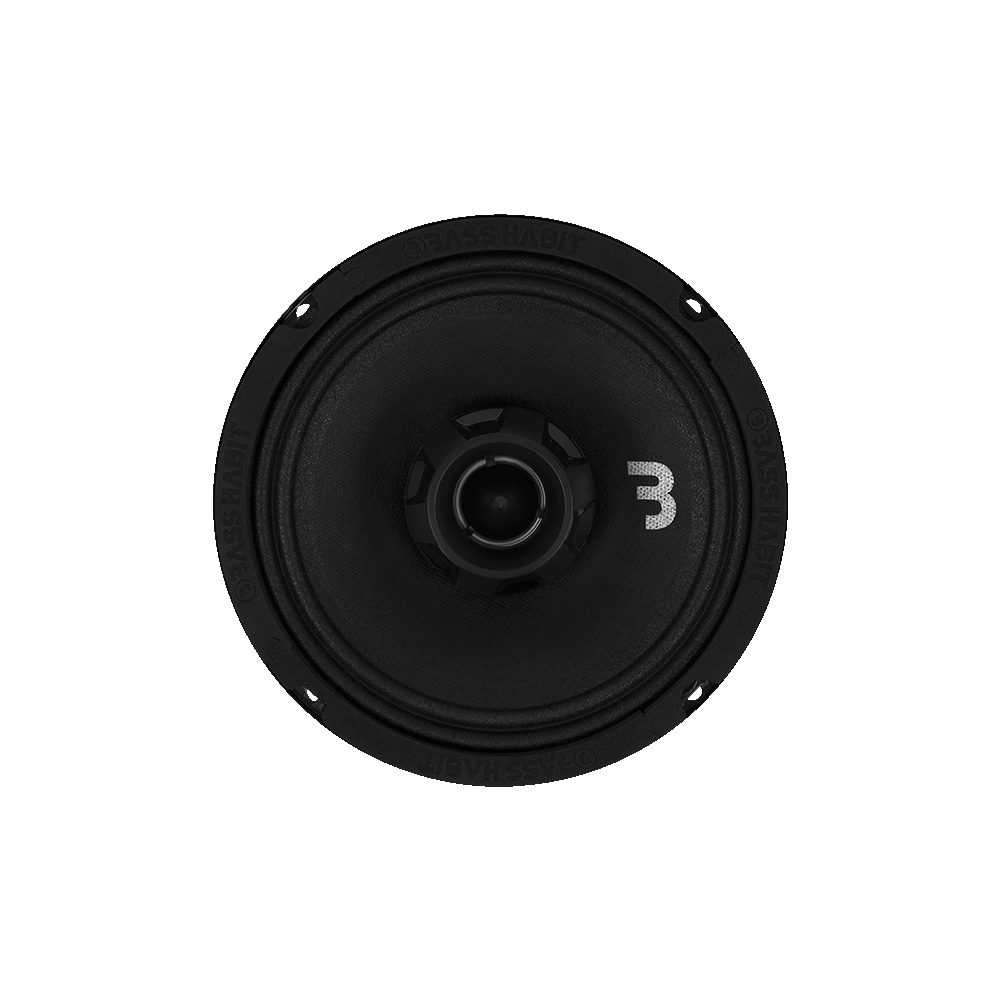

Bass Habit SPL Elite SE165CX is a 6.5″ coaxial speaker that can produce awesome amounts of sound. A speaker that sparks joy in every possible way, and totally deserving of the title “SPL Elite”. The great combination of midbass/midrange speaker with an unpressed paper cone and M-Roll Cloth-surround, together with a solid 25mm titanium tweeter, guarantees that the SE165CX makes it easy to create a loud SPL system.



The Bass Habit CX series is built to handle just about anything. A tough steel basket, robust voice coil (1.75″), and oversized ferrite/neodymium magnets. Thanks to smart design choices, the speaker has a sensitivity of 97 dB. The power handling capacity is 150W (RMS), resulting in a really big sound together with a powerful amplifier!



The large frequency range and the fact that it is a point source (directed) sound source makes the SE165CX incredibly flexible in terms of mounting options. You can easily place the speakers in the door panels, on the rear shelf or in an enclosure.

Additional information

Series

Elite

Component

Speaker

Size

6.5 inch

Nominal impedance

4 Ohm

Power RMS

150W

Power MAX

300W

Freq. response

100Hz – 20kHz

Sensitivity

97 dB

Mounting depth

76 mm

Mounting diameter

146 mm

Unit

Pc

Product Manual SE165CX

Download

Product manual for SE165CX, SE200CX & SE690CX
